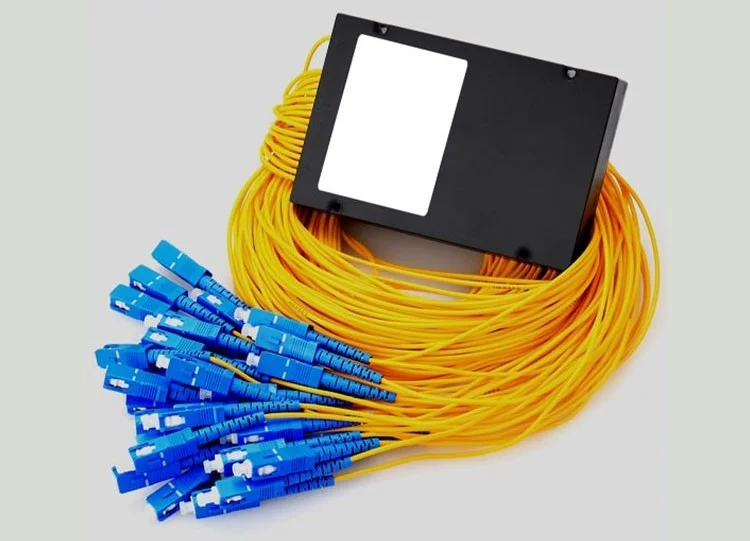

1 X 16 module type 2.0mm PVC fiber G657A1 with SC/UPC connectors

Product Specifications

Splitter Type: PLC (Planar Lightwave Circuit) Splitter
Fiber Type: Single-mode (SM) G657A2
Split Ratio: 1 x 16 (1 input, 16 output ports)
Wavelength Range: 1260-1650nm
Insertion Loss: ≤13.5dB
Uniformity: ≤1.0dB
Return Loss: ≥50dB
Connector Type: SC/APC (Angled Physical Contact)
Cable Type: 2.0mm ABS Box
Cable Length: 1.5m (input and output ports)
Operating Temperature: -40°C to +85°C

Description

1 X 16 module type 2.0mm PVC fiber G657A1 with SC/UPC connectors

Name: 1 X 16 module type 2.0mm PVC fiber G657A1 with SC/UPC connectors
SKU: 14680
Availability: InStock

the 1 x 16 module type 2.0mm PVC fiber G657A1 with SC/UPC connectors offers a compact and reliable solution for high-speed data transmission. Its robust construction, coupled with high-quality fiber and connectors, ensures optimal performance and longevity in a variety of networking environments. Whether used in residential, commercial, or industrial settings, this module provides the connectivity needed to support today’s demanding applications.

The 1 x 16 module type 2.0mm PVC fiber with SC/UPC connectors is a specialized piece of equipment designed for efficient data transmission. This module features a compact design, making it suitable for various networking applications. It consists of 16 individual fiber strands encased in a durable 2.0mm PVC coating, ensuring reliable performance and protection against environmental factors.

The G657A1 fiber type is known for its high-quality optical properties, allowing for excellent signal transmission with minimal loss. This fiber type is particularly well-suited for use in telecommunications and data networking due to its low attenuation characteristics.

The SC/UPC connectors included with this module are widely recognized for their ease of use and reliable connectivity. These connectors feature a simple push-pull mechanism, making installation quick and hassle-free. Additionally, the UPC (Ultra Physical Contact) polishing ensures optimal signal transfer with minimal reflection.

The 1 x 16 configuration of this module means it can accommodate up to 16 individual fiber connections within a single unit. This makes it ideal for applications where space is limited or where multiple connections need to be managed efficiently. Whether used in telecommunications infrastructure, data centers, or enterprise networks, this module offers scalability and flexibility to meet evolving connectivity needs. Read more here.
